JAMEC AIR EQUIPMENT

Jamec Air Equipment adaptors, airline fittings, couplings and tail pieces.

COUPLINGS -

13.0980 - Jamec 310 Series - Single Button - Female - 1/4" BSP

Features:

• JAMEC PEM SERIES
• Single push button locking system
• Stainless steel internals to resist corrosion
• Made from corrosion resistant , long lasting brass
• Use with Jamec Pem 310 and 320 series adaptors

Product Specifications

• Operation: Single button
• Tail / Thread Type: Female
• Supply Pressure Max: 152 psi, 1050 kPa
• Airflow: 30 cfm, 850 L/min @ 100 psi, 690 kPa
• Application: Compressed air only

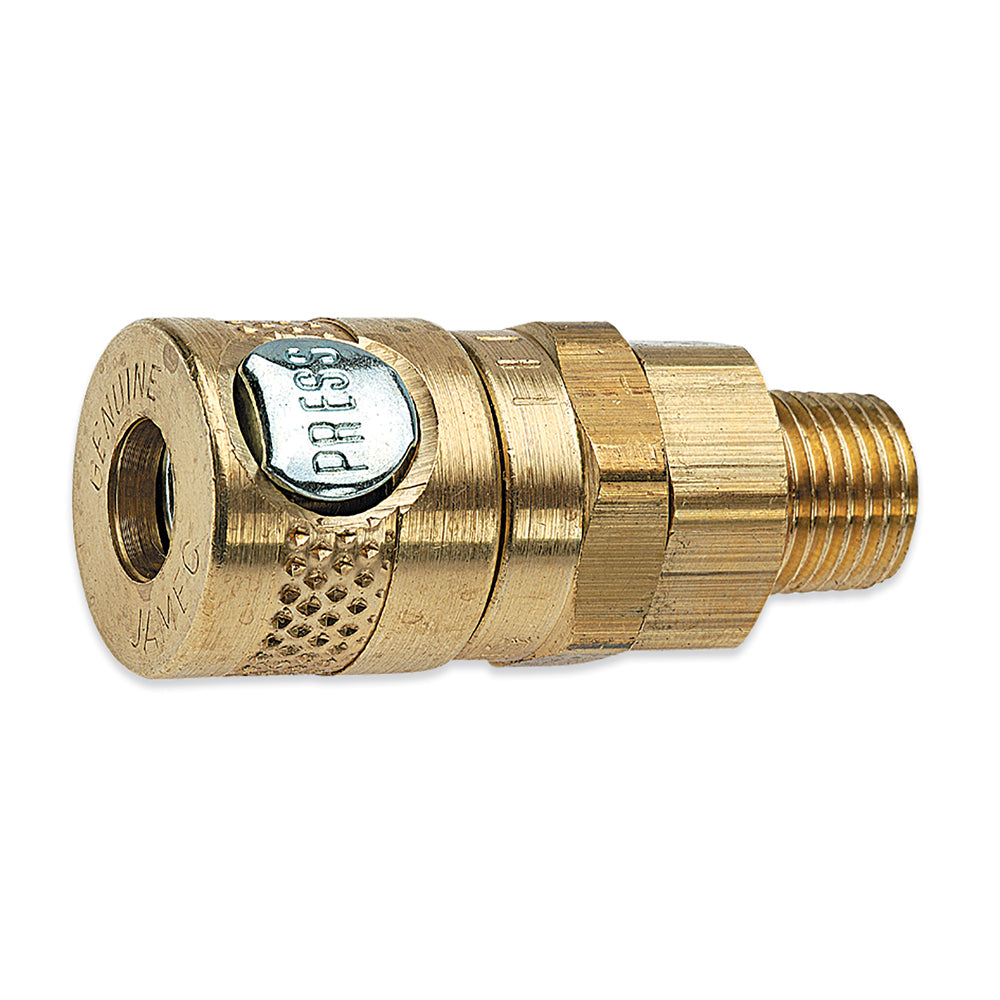

13.0965 - Jamec 310 Series - Single Button - Male - 1/4" BSP

Features:

• JAMEC PEM SERIES
• Single push button locking system
• Stainless steel internals to resist corrosion
• Made from corrosion resistant , long lasting brass
• Use with Jamec Pem 310 and 320 series adaptors

Product Specifications

• Operation: Single button
• Tail / Thread Type: Male
• Supply Pressure Max: 152 psi, 1050 kPa
• Airflow: 30 cfm, 850 L/min @ 100 psi, 690 kPa
• Application: Compressed air only

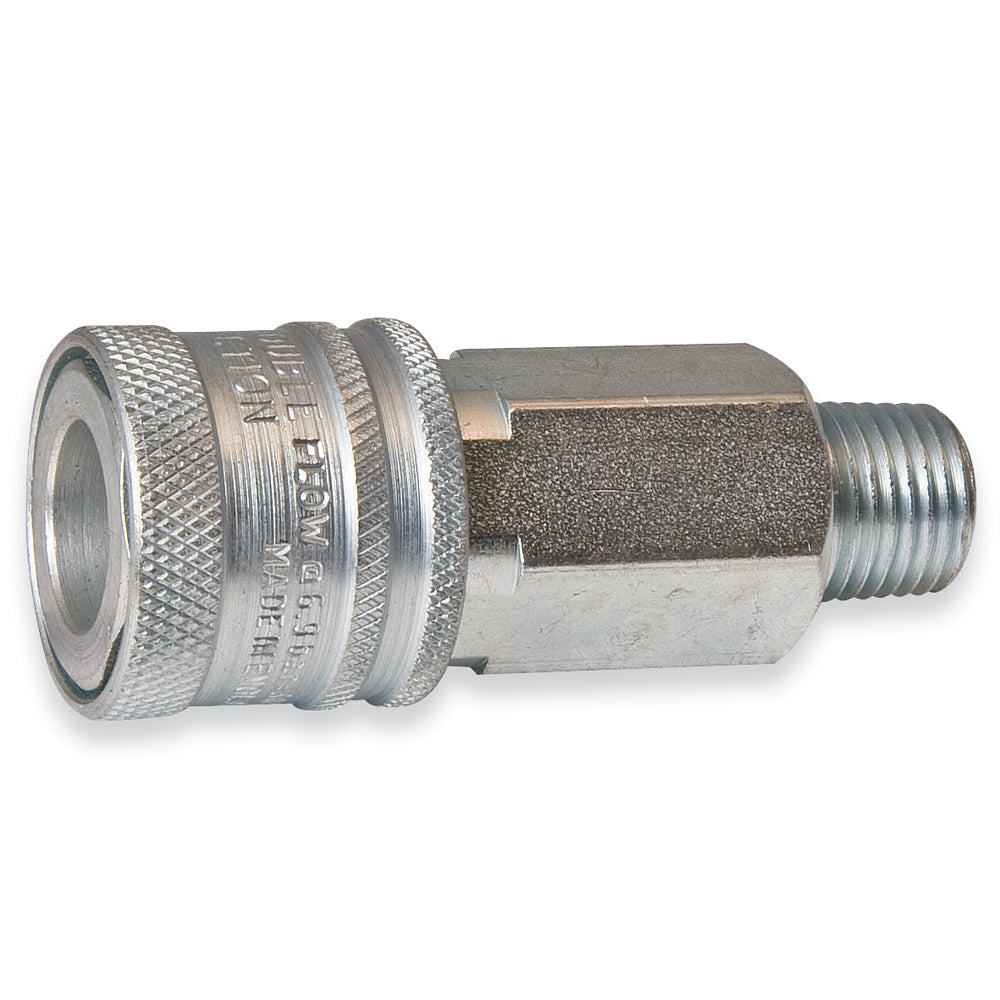

01.3400 - NITTO equivalent HIGH VOL - Two Stage

Features:

• NITTO EQUIVALENT SERIES
• Two stage slide locking system
• Steel construction
• Use with Nitto Equivalent adaptors
• Interchanges with Nitto equivalent couplings
• High volume air flow
• Application: Compressed air only

Product Specifications

• Supply Pressure Max: 152 psi, 1050 kPa
• Airflow: 92 cfm, 2605 L/min @100 psi, 690 kPa
• Operation: Two stage slide

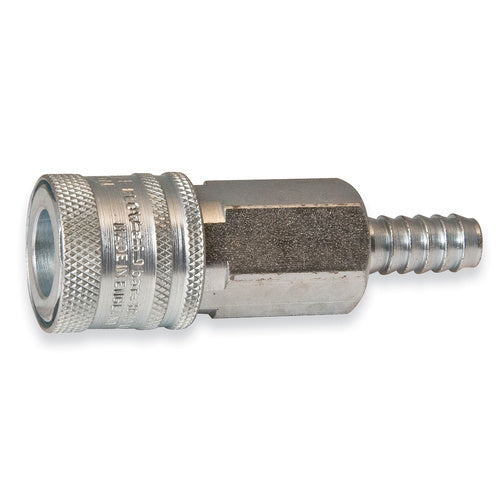

01.3440 - NITTO equivalent  HIGH VOL - Two Stage - Hose Tail - 5/16" -

Features:

• NITTO EQUIVALENT SERIES
• Two stage slide locking system
• Steel construction
• Use with Nitto Equivalent adaptors
• Interchanges with Nitto equivalent couplings
• High volume air flow
• Application: Compressed air only

Product Specifications

• Supply Pressure Max: 152 psi, 1050 kPa
• Airflow: 92 cfm, 2605 L/min @ 100 psi, 690 kPa
• Operation: Two stage slide

ADAPTORS -

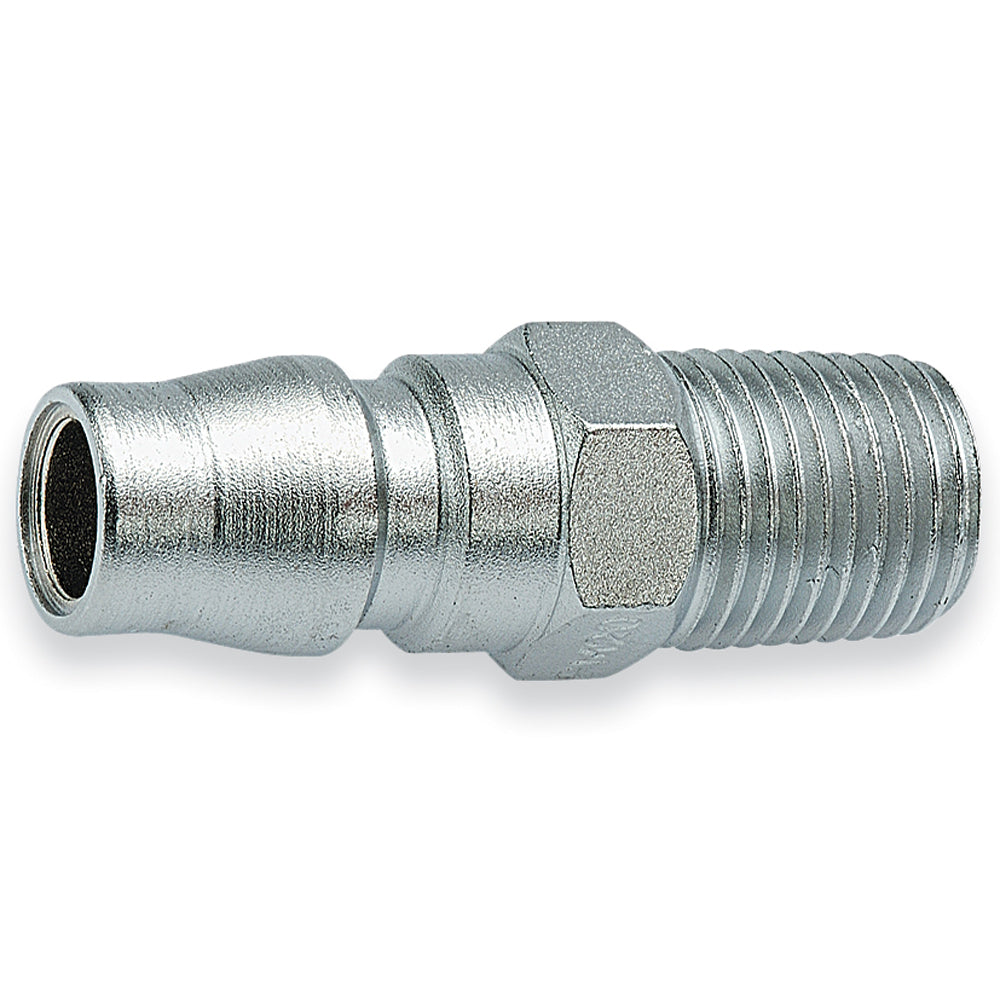

12.3460 - NITTO Equivalent - HIGH VOL - 1/4" Male adaptor

Features:

• NITTO EQUIVALENT SERIES
• Steel construction
• Suits both high volume two stage and one stage NITTO equivalent couplings
• Interchanges with NITTO equivalent adaptors

Product Specifications

• Tail / Thread Type: Male
• Material: Steel
• Supply Pressure Max: 152 psi, 1050 kPa
• Airflow: 101 cfm, 2860 L/min @ 100 psi, 690 kPa
• Application: Compressed air only

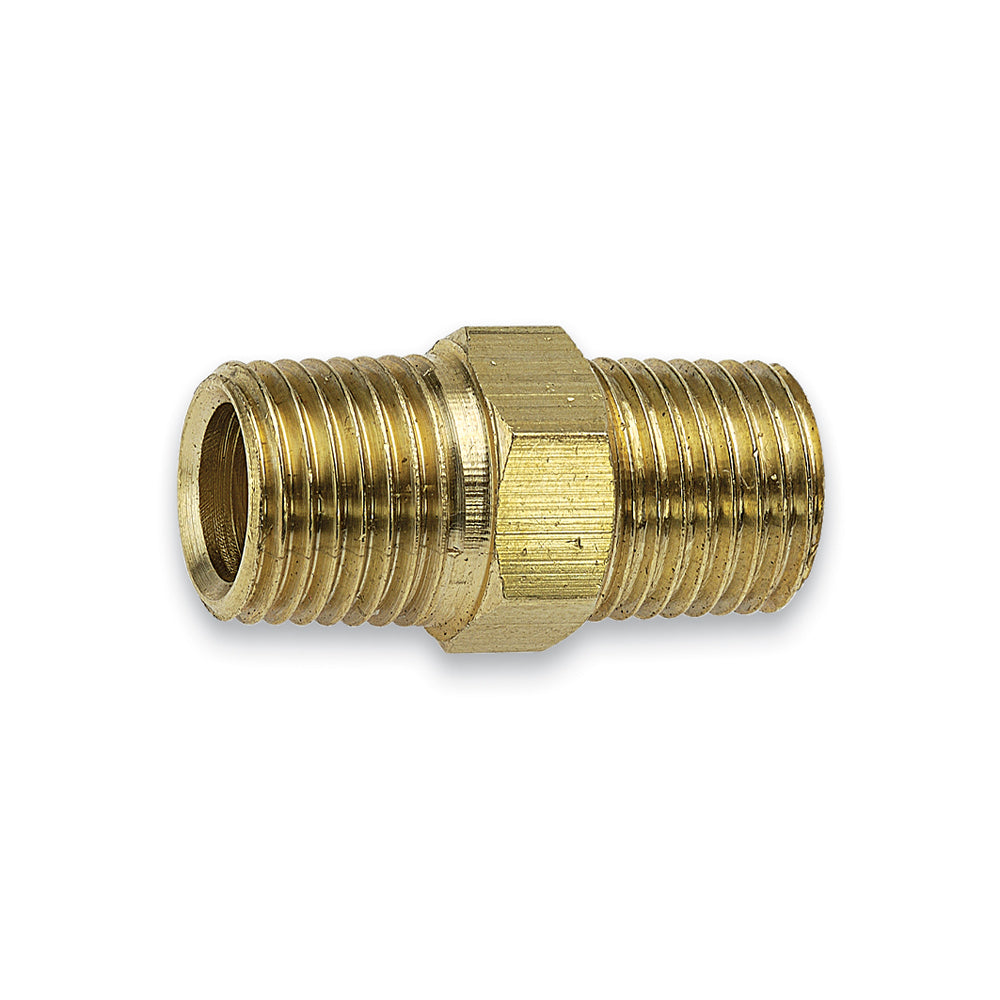

39.1502 - 1/4" x 1/4" Hexagon Nipple (Brass)

Features:

• Heavy duty industrial strength
• Made from corrosion resistant , long lasting brass

Product Specifications

• Tail / Thread Type: Male
• Tail / Thread Size: 3/8" x 1/4" BSP
• Material: Brass
• Archive Part No.: HN6X4
• Application: Compressed air only

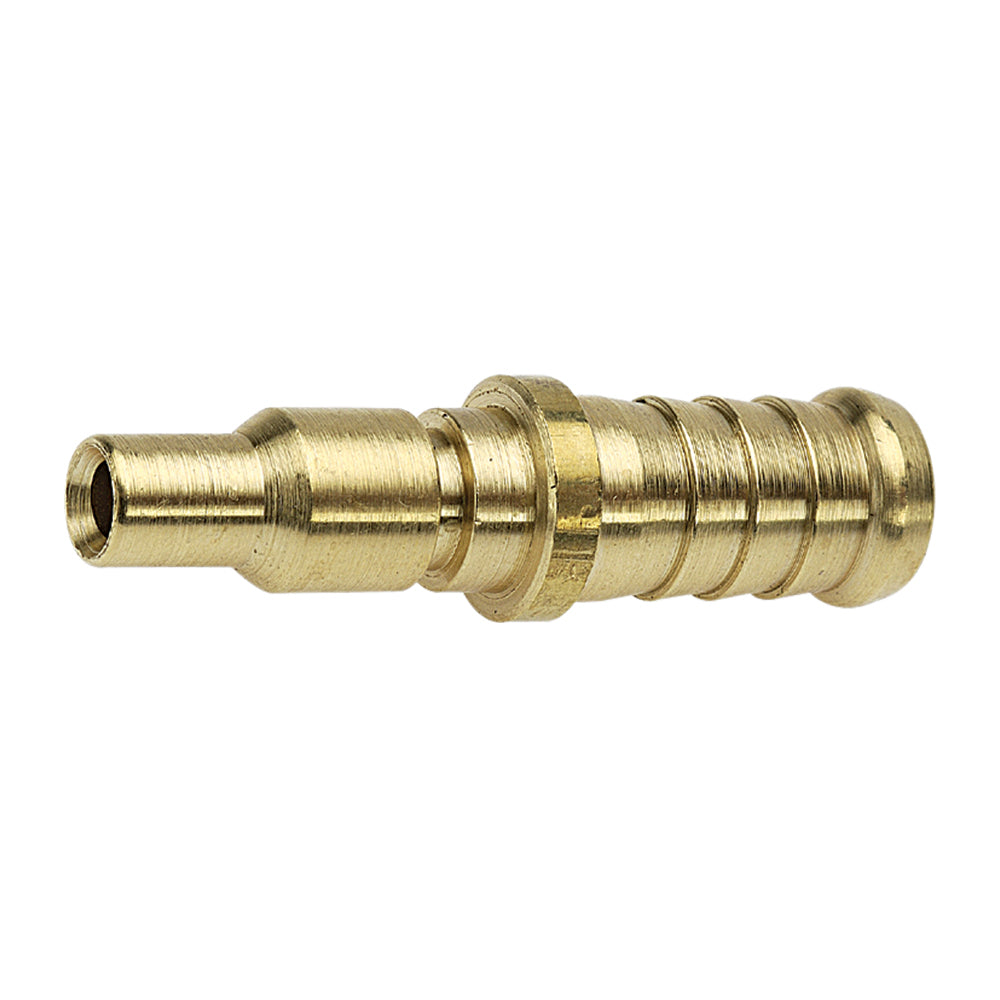

31.1118 - Jamec 310 & 320 Series Hose Tail - 8mm - 5/16"

Features:

• JAMEC PEM SERIES
• Heavy duty industrial strength
• Made from corrosion resistant , long lasting brass
• Use with Jamec Pem 310 & 320 series couplings

Product Specifications

• Tail / Thread Type: Hose Tail
• Material: Brass
• Supply Pressure Max: 152 psi, 1050 kPa
• Airflow: 30 cfm, 850 L/min @ 100 psi, 690 kPa
• Advised Application: Compressed Air Only

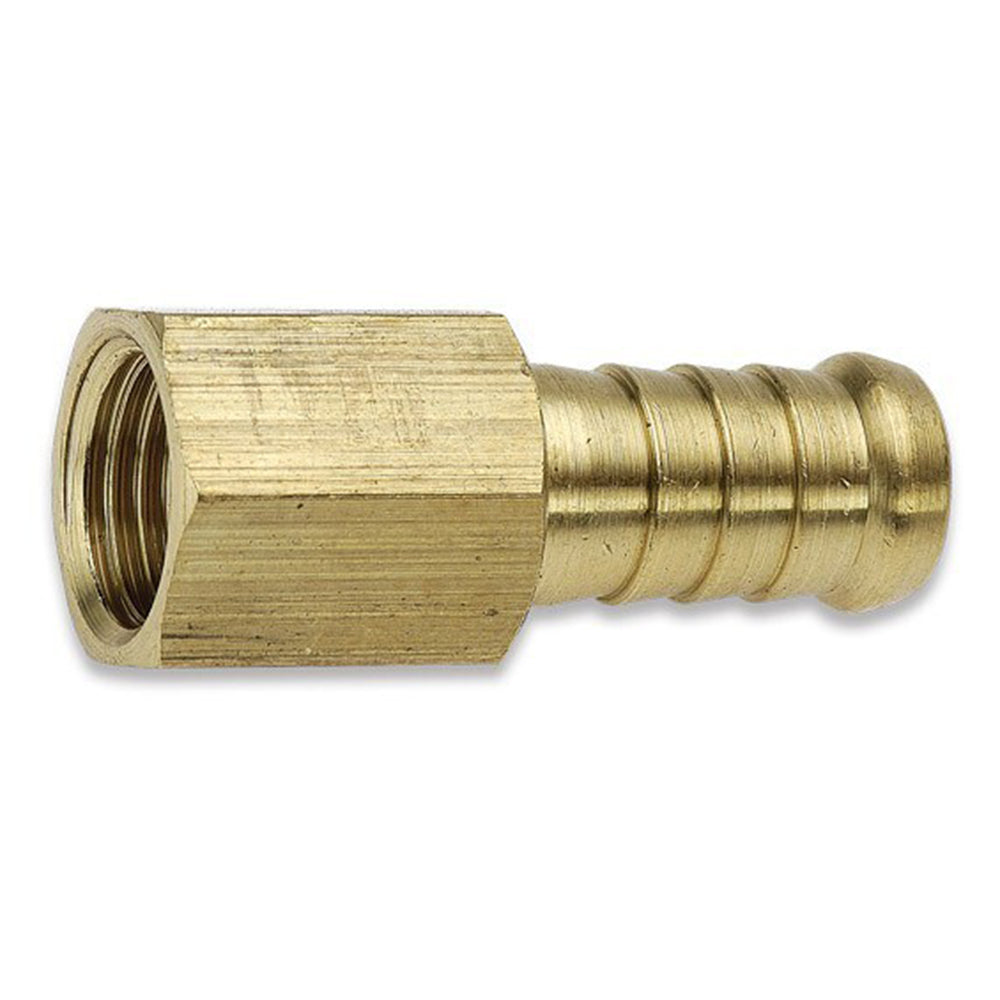

29.1258 -  Jamec  3/8" hose  X 1/4" Female Barbed Tailpiece End -

Features

• Heavy duty industrial strength
• Long lasting brass

Specifications:

• Type: 1/4" BSP Female
• Tail: 10mm - 3/8" Hose
